IDE to Sata Adapter

IDE to Sata Adapter

Regular price $22.00 CAD
Regular price Sale price $22.00 CAD
Sale Sold out
Shipping calculated at checkout.
Model

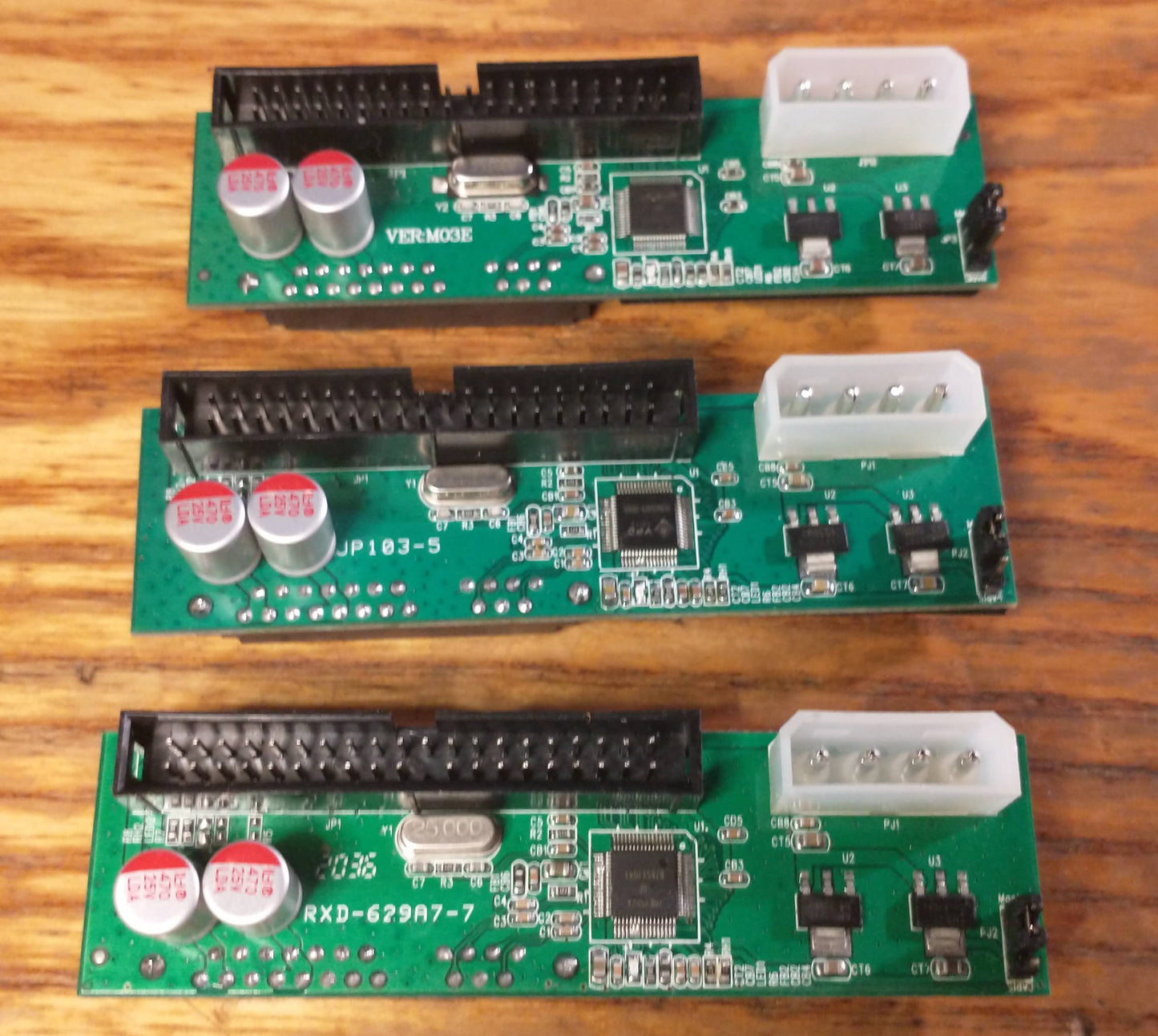

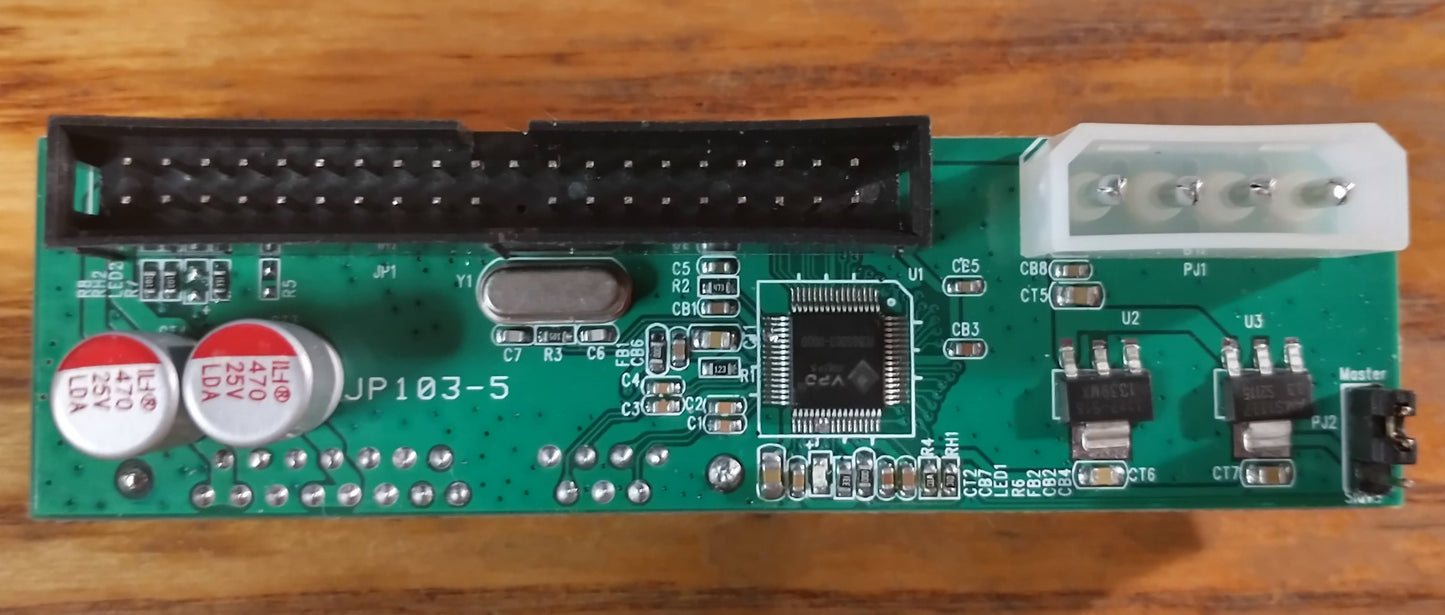

All of the models that i have available are essentially the same adapter. The VER:M03C has a different (slower) chip on it so I will not be sourcing that model but the 3 that I have here are all fast.

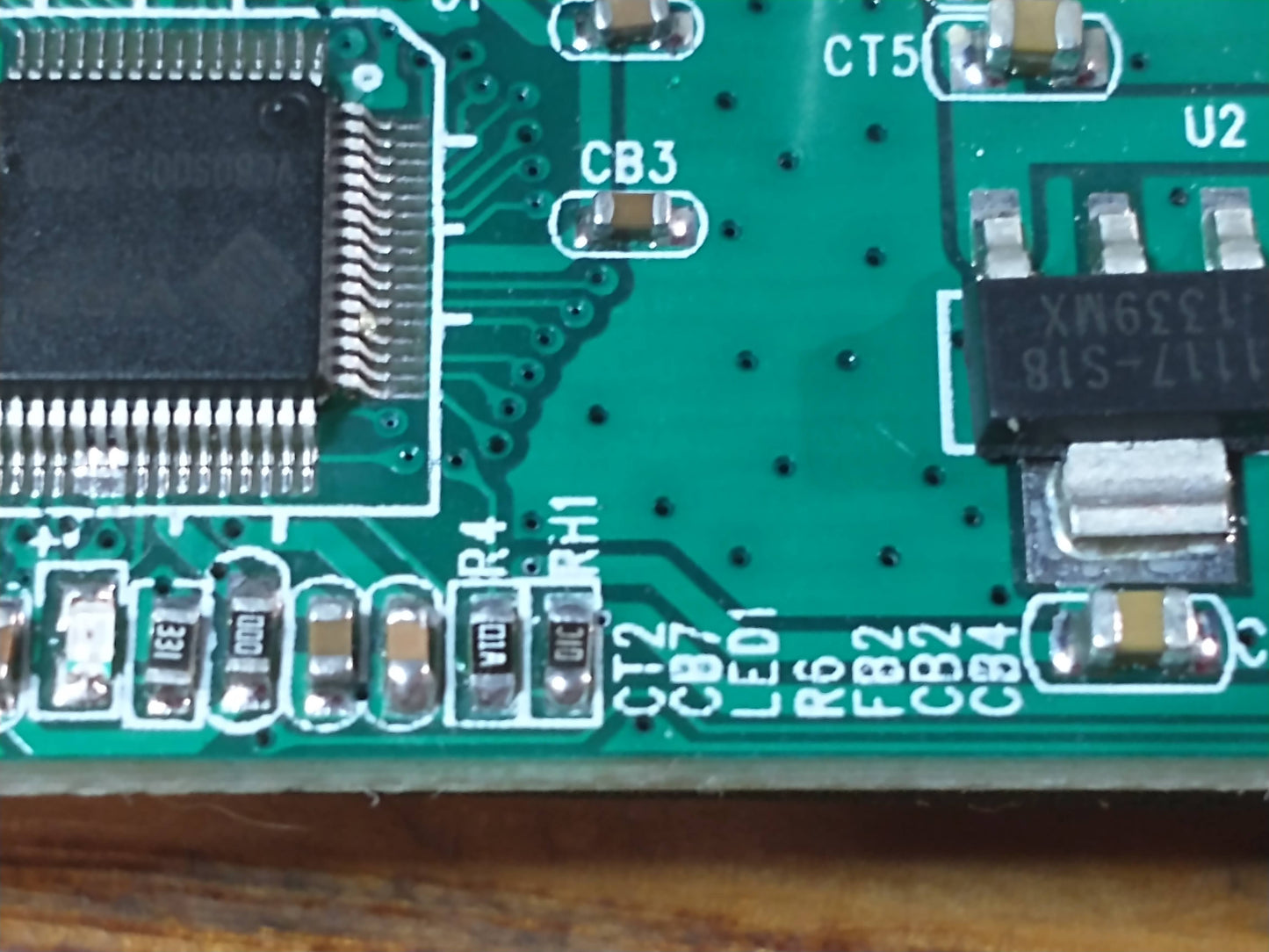

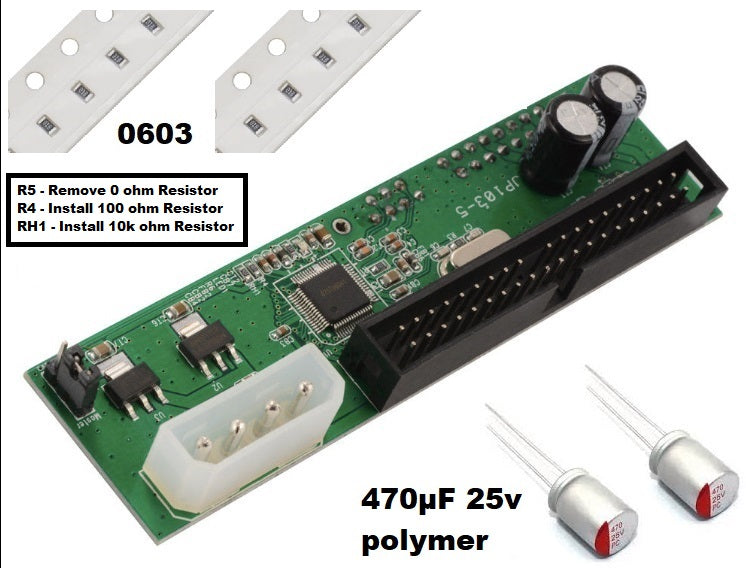

They've been modified and configured for the OG Xbox with the proper resistors added and removed to run very smooth and quick.

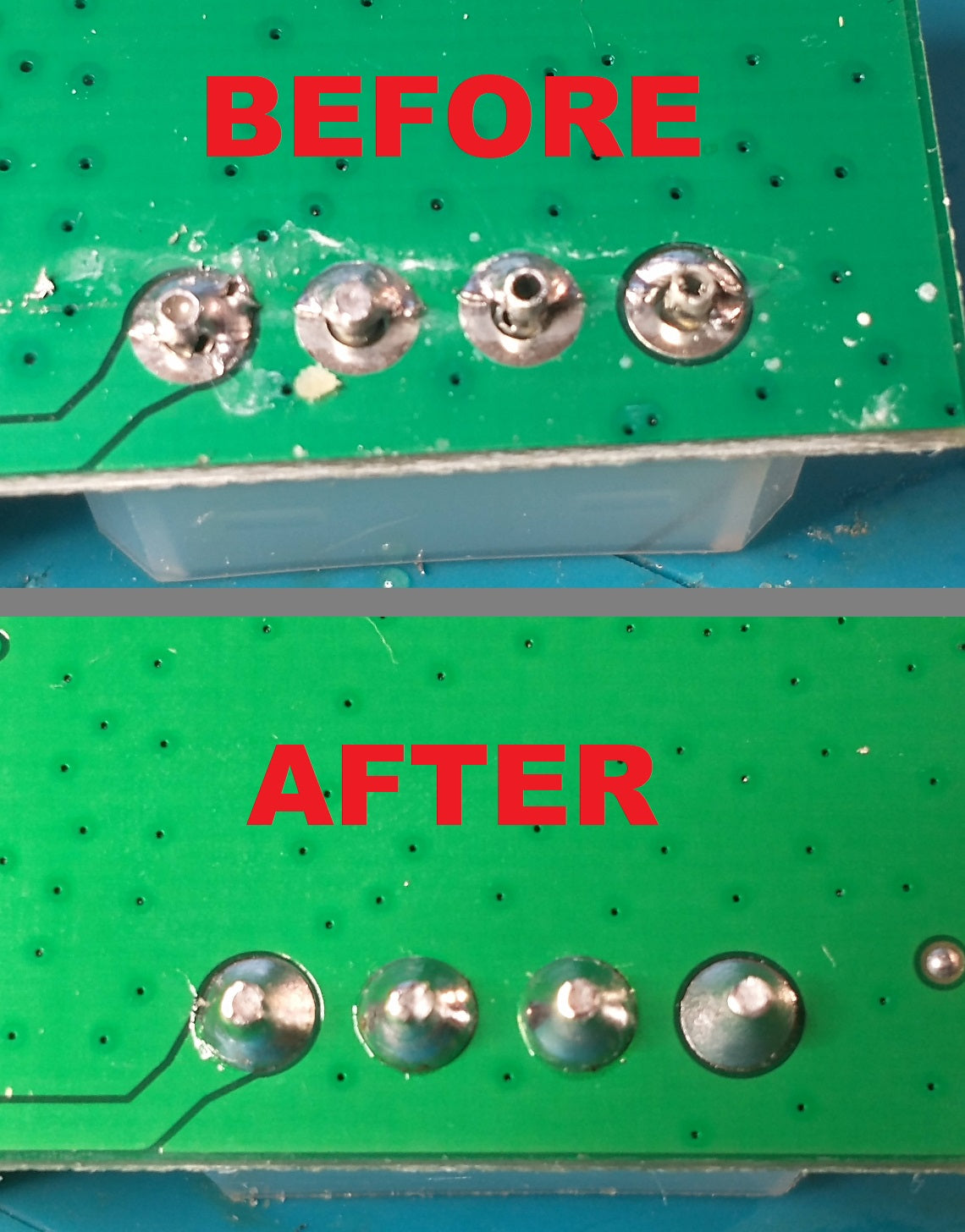

They generally come very poorly assembled (soldered) so they've been extensively inspected and cleaned up. All through-hole solder points have been reflowed and all tacky SMD components have been reflowed and attached properly.

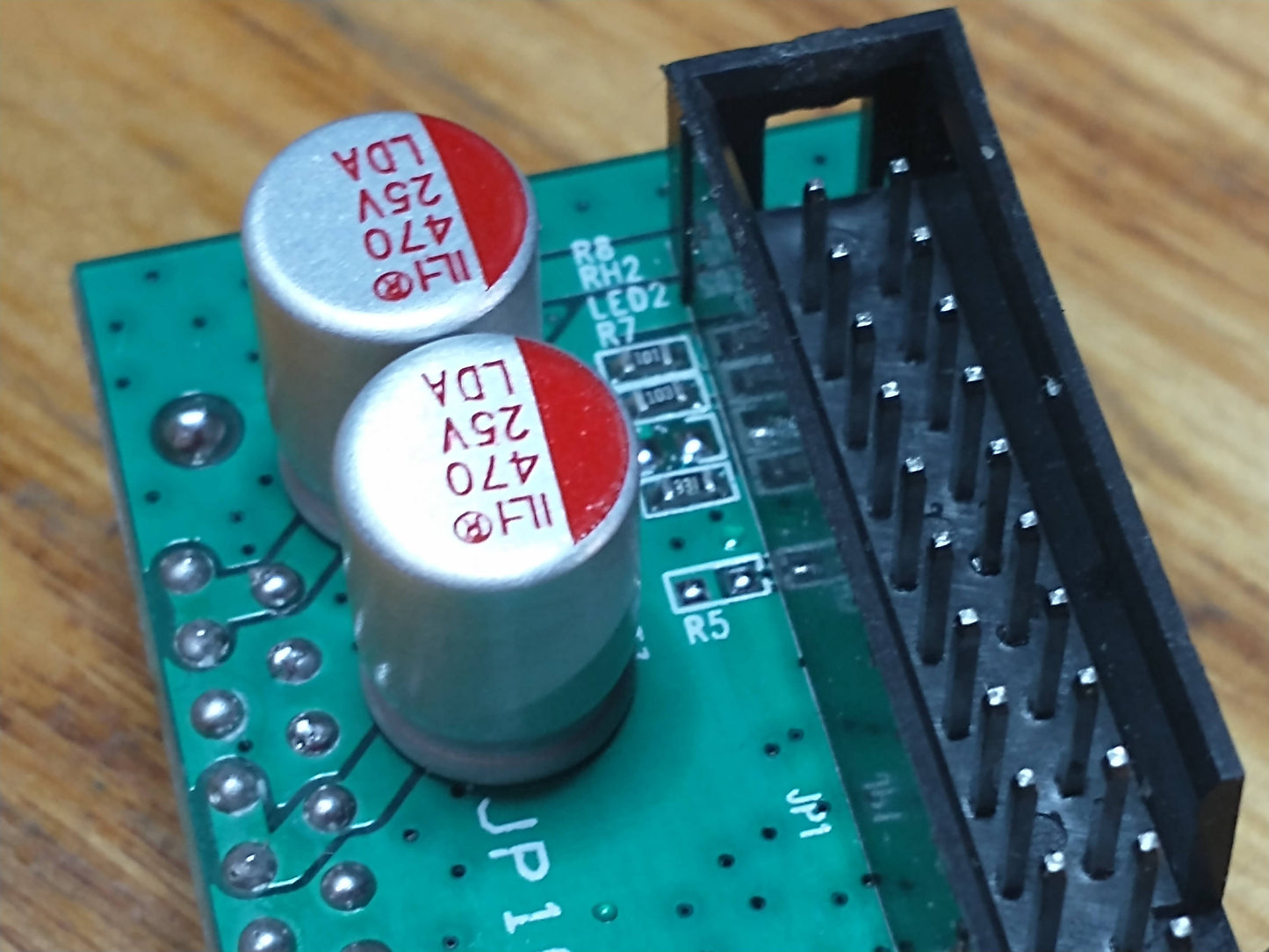

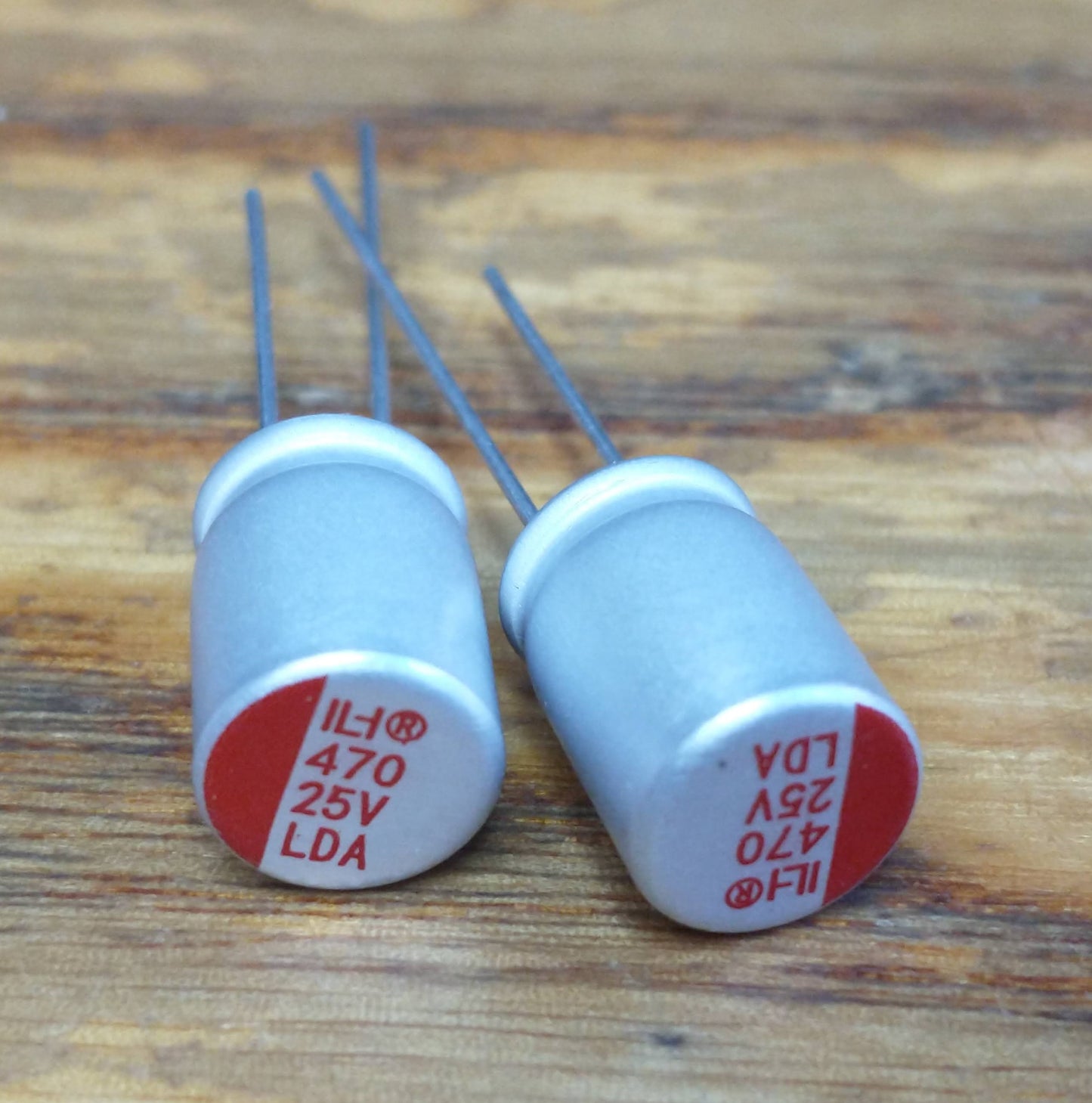

The capacitors that are on them when they're new are very poor quality, cheap caps. The original caps have been removed and replaced with high quality polymer capacitors. This creates better stability in it's power for better reliability. These caps are available separately if you have one of these adapters of your own that you would like to upgrade.

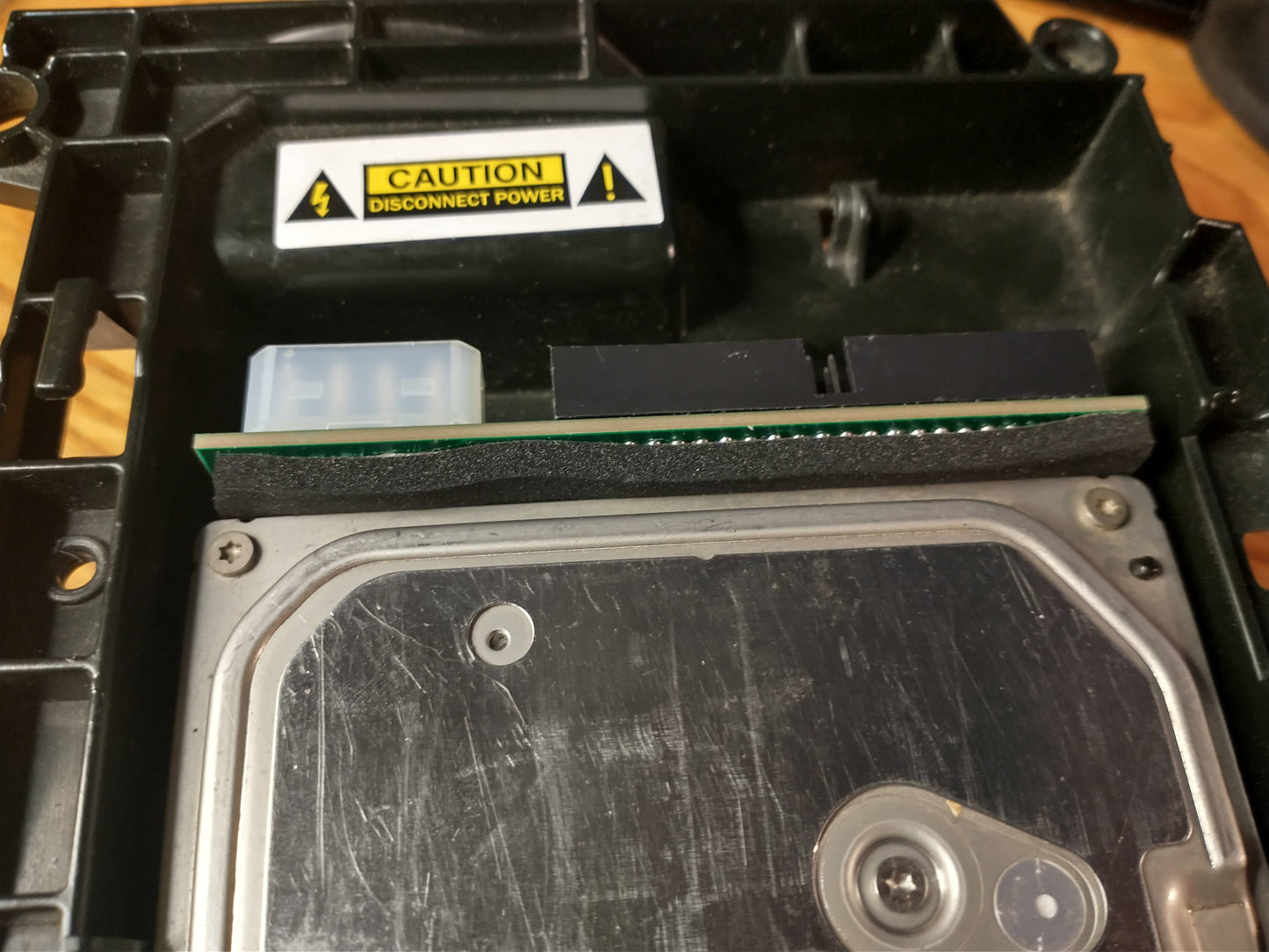

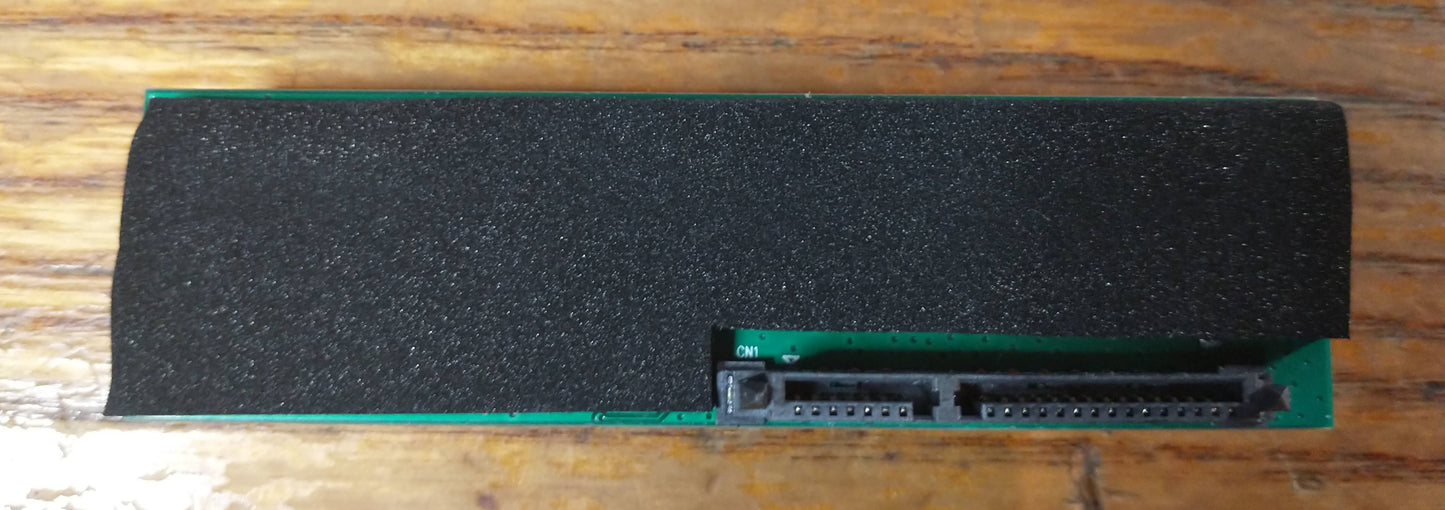

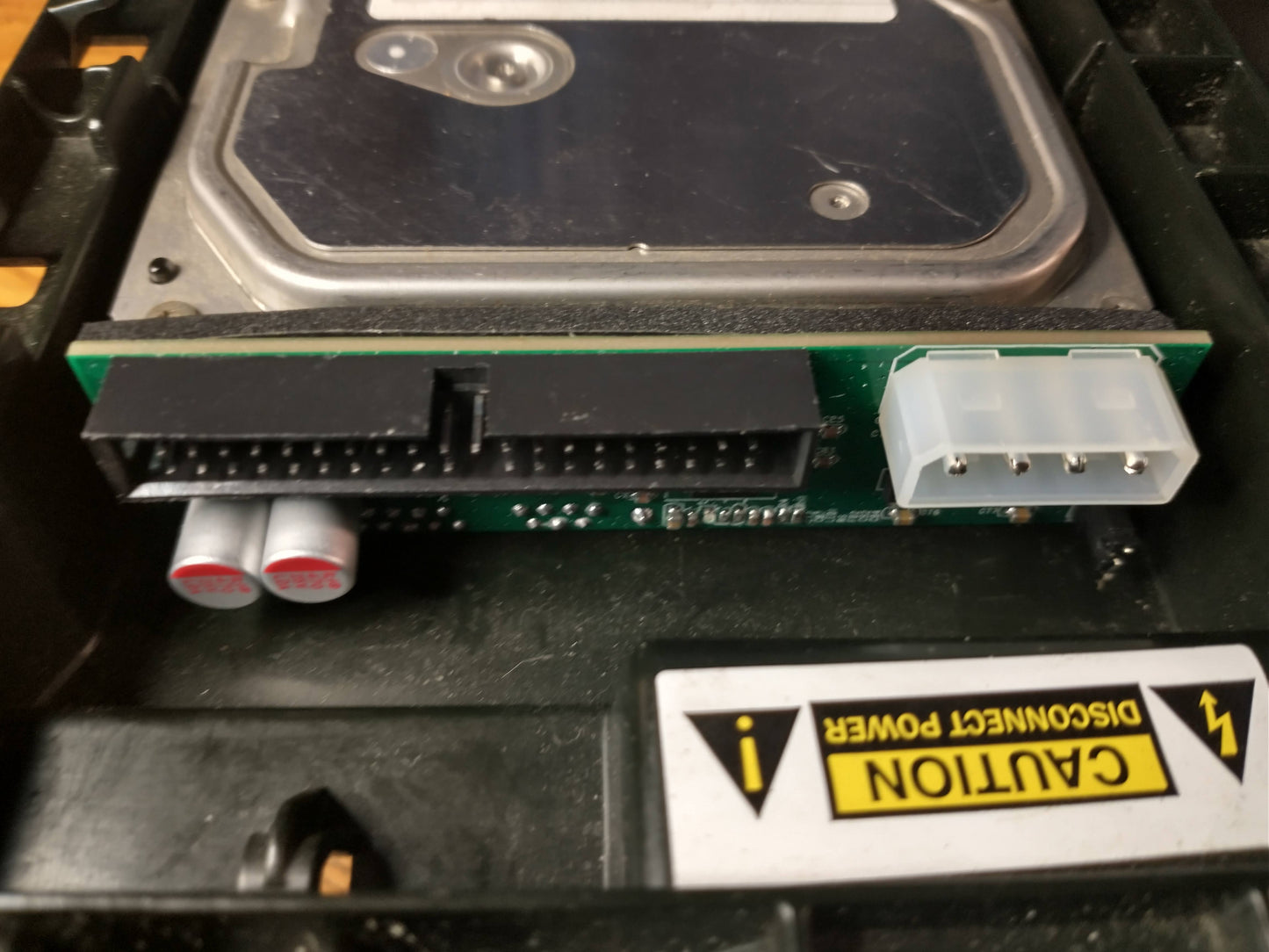

I have attached a foam rubber backing to isolate these from the housing of the hard drive. Without some kind of separation they can make contact with the hard drive and short the power with possible damage to the hard drive and/or the Xbox's power supply.

IMPORTANT NOTE: No IDE to SATA adapter runs well, if at all, in an OG Xbox without an 80 wire ultra-IDE cable. If it actually does fire up on the OEM 40 wire cable, that cable will affect its performance and reliability. If you need 80 wire ultra-IDE cables, don't forget to grab that too!!

SPEED TEST VIDEO:
