Toslink Pod For DIY Cables
Toslink Pod For DIY Cables
Regular price
€9,95 EUR
Regular price
Sale price
€9,95 EUR
Unit price
per
Shipping calculated at checkout.
This is a "SPECIAL ORDER" item. They are made only when ordered. Please contact me to get the time-frame on when this can be ready and to order!

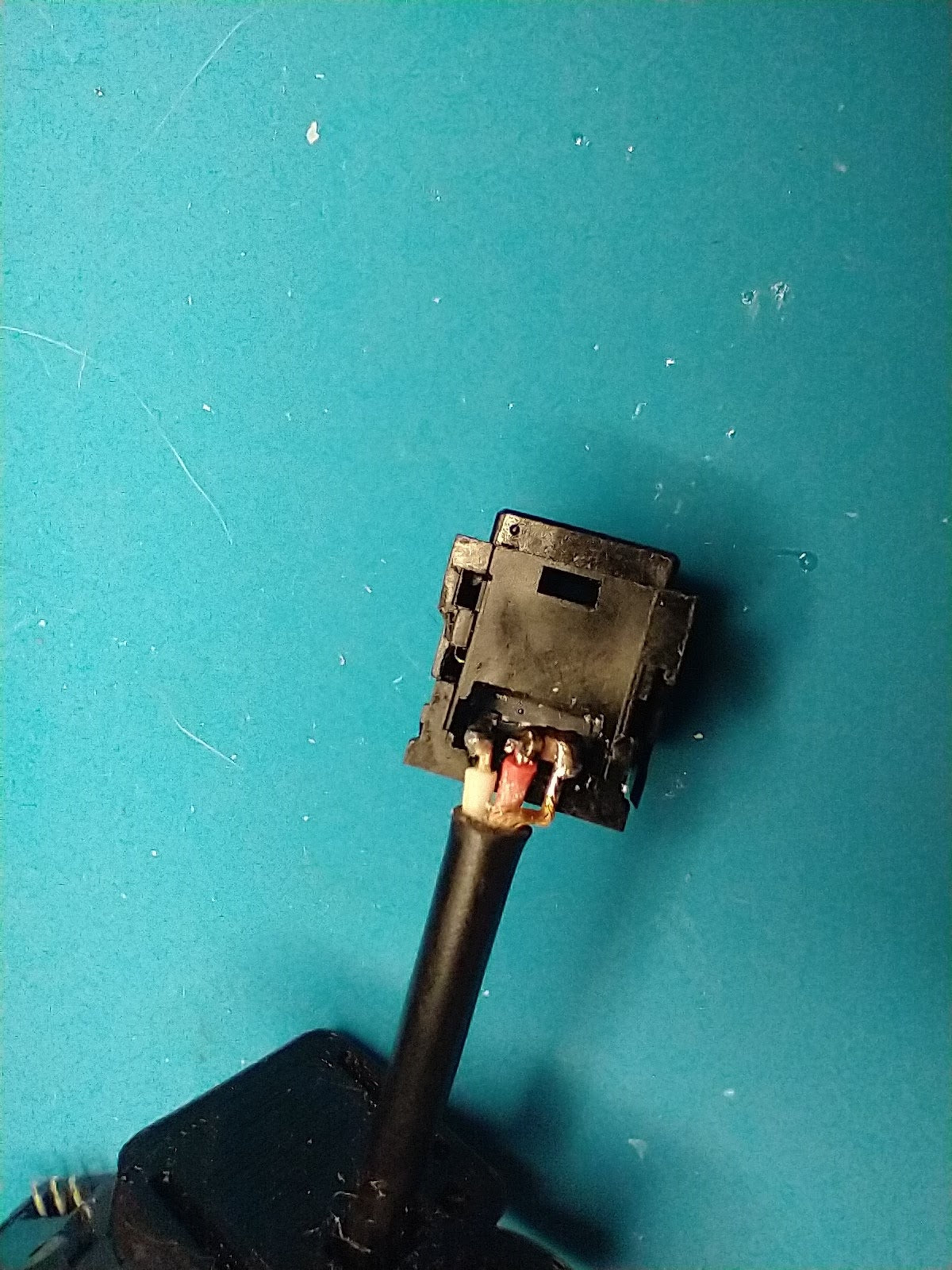

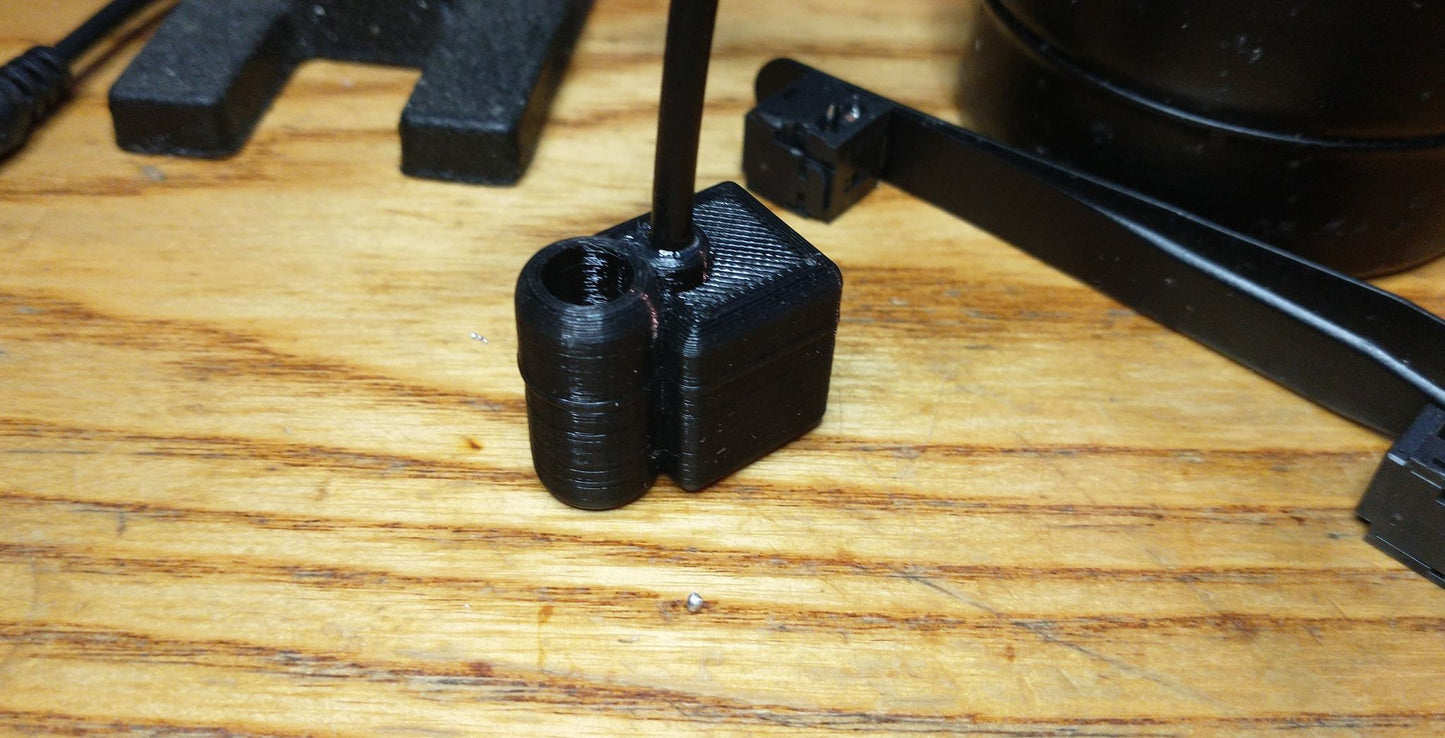

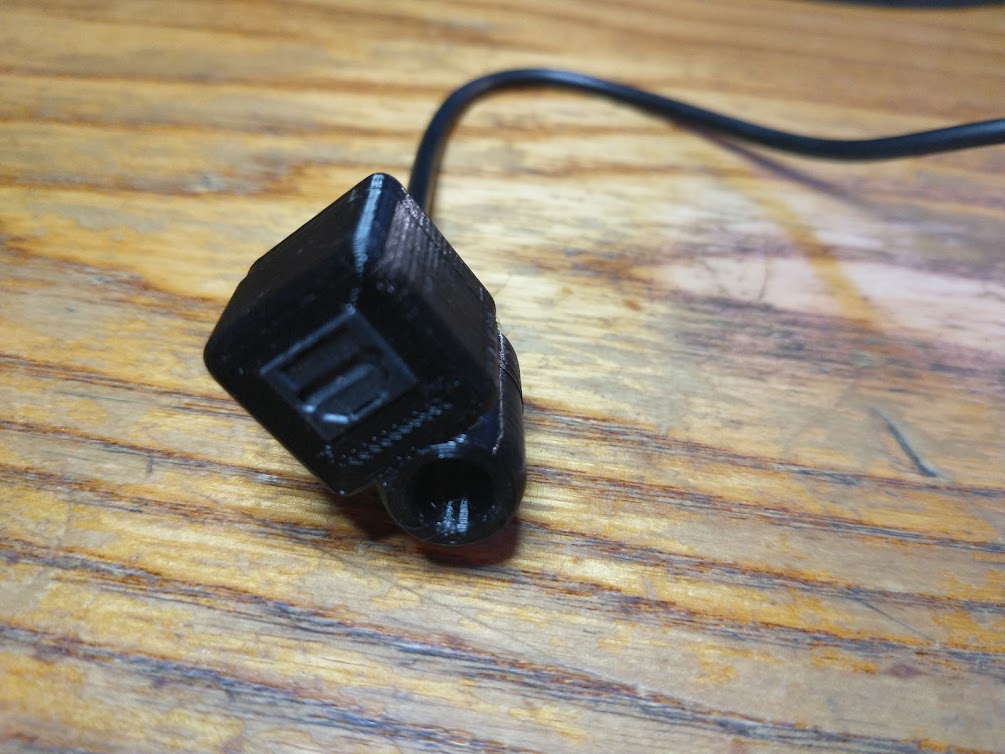

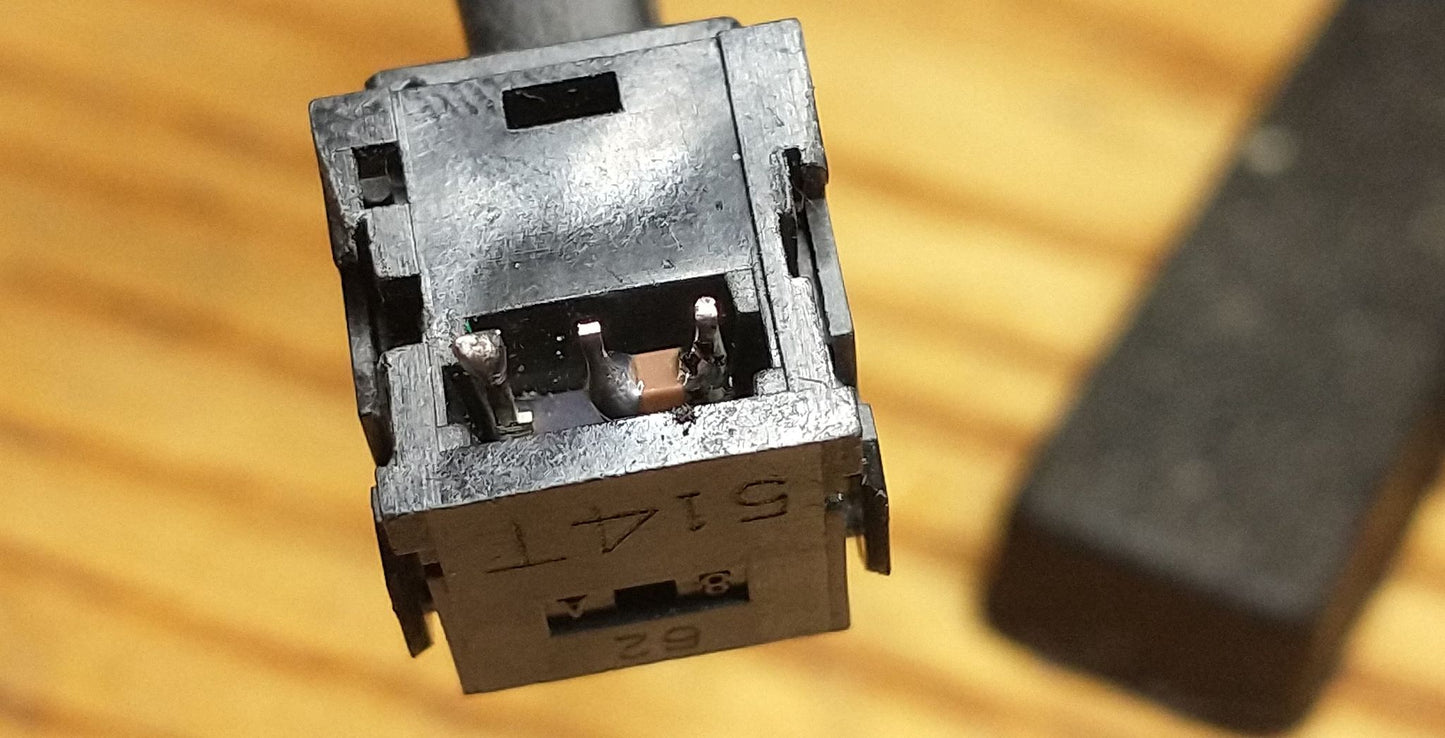

These are Toslink transmitter pods for making your own cables. They're 3d printed in PETG and assembled using reclaimed Toslink transmitters from scrapped Xbox 360 Audio Video Interface Plugs. They also have a 100v 0.1µF filter capacitor installed

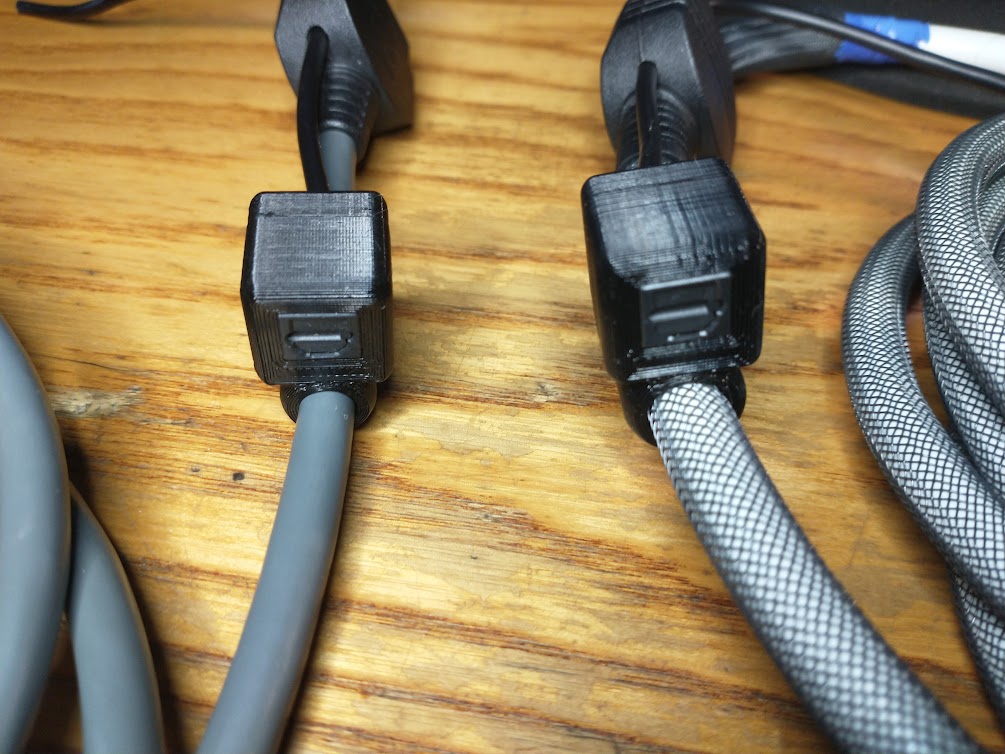

They're in 2 sizes, 7mm for OEM 360/OG cables and 9mm for larger gauge premium cables (like Monster, Psyclone, & RocketFish)

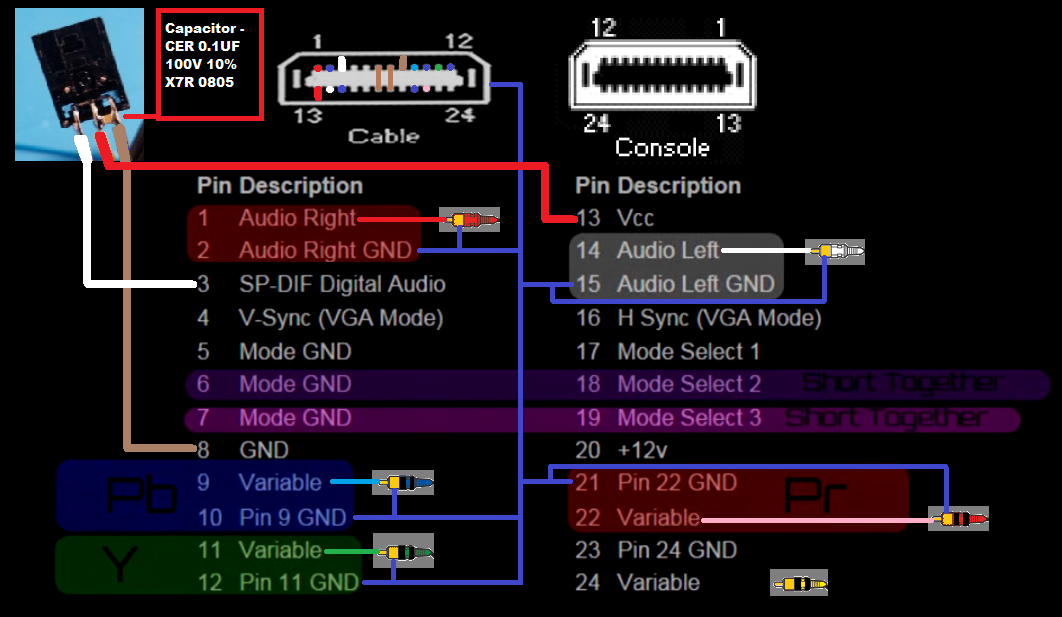

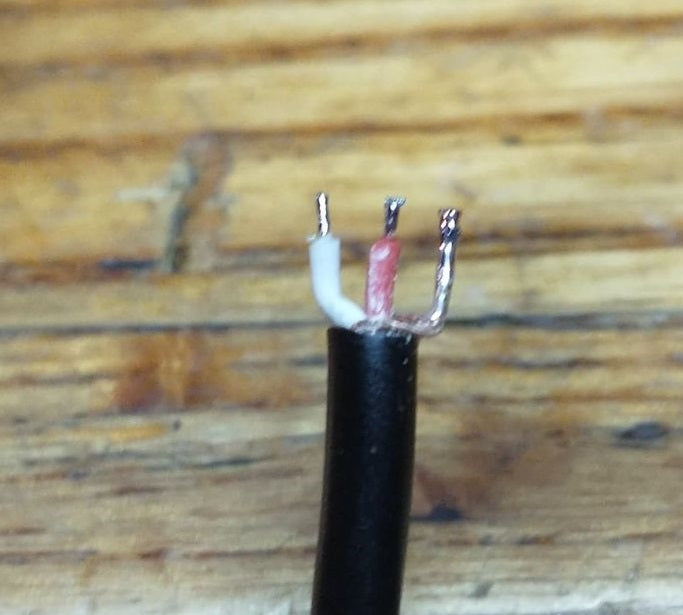

Wiring Color Code
White - SPDIF
Red - Vcc (5v)
Copper Shield - Ground
